Gutter Channels
Material Thickness: 1.5 mm or 2.0 mm
Stainless Steel Options: V2A (1.4301) or V4A (1.4571)
Available Widths: from 100 mm to 1000 mm
Included: mounting feet, anchoring whiskers for concrete
4 Cover Types to Choose From: anti-slip 25x3 mm, plate 25x10 mm, ladder 25x8 mm, anti-slip ladder 25x8 mm
4 Bending Types to Choose From: standard, for tile installation, flange/collar, wall flange
Standard Feature: single edge reinforcement with 15x15 mm profile
Optional:
- double edge reinforcement for extreme loads - consists of a set of 15x15 mm and 20x40 mm profiles
- flange or perforated sheet flange
- epoxy resin with quartz sand as edge filler
- priming of the channel body with epoxy resin and quartz sand

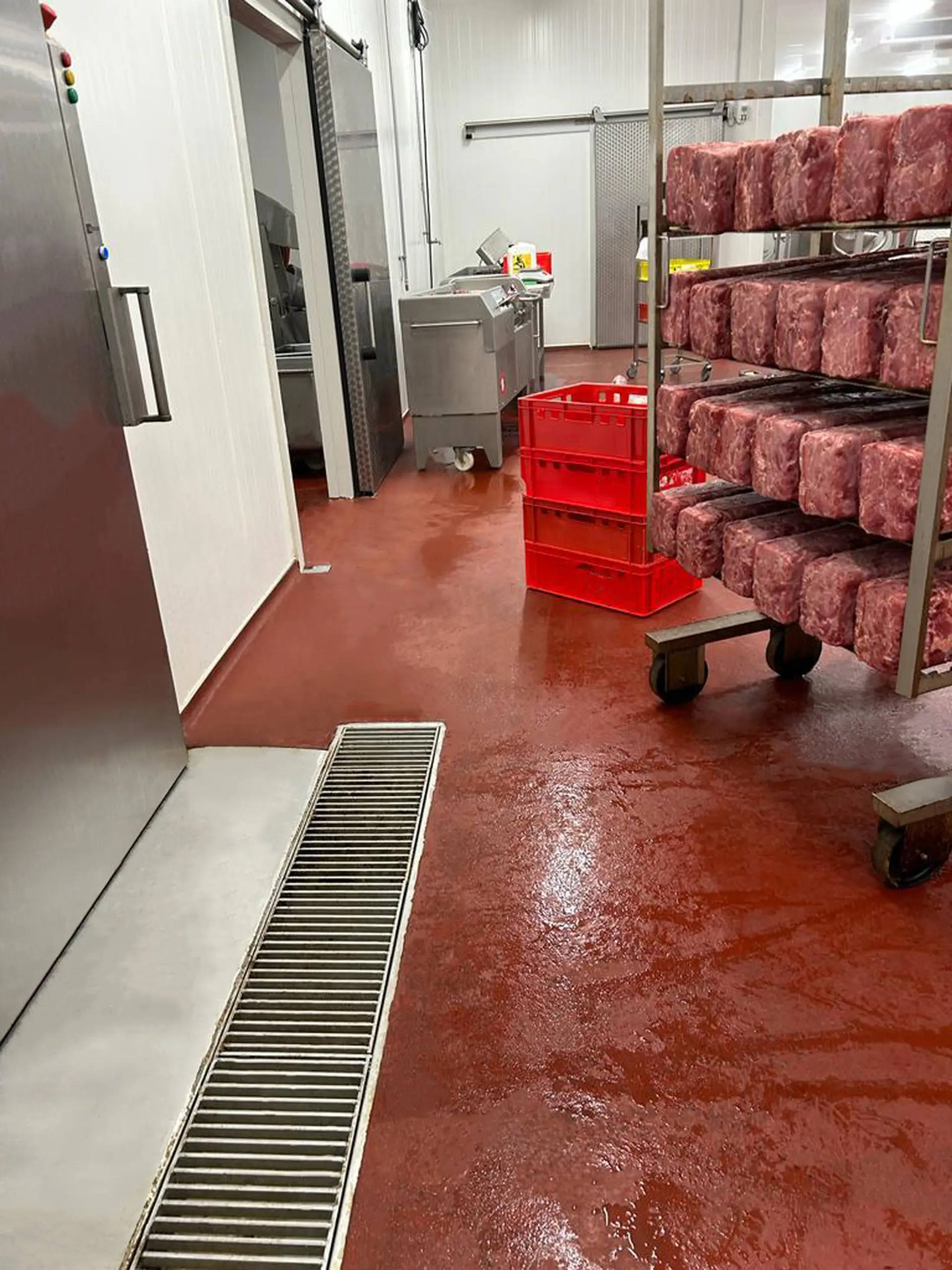

Stainless steel drainage channel for applications in the food processing industry.
The B&K GROUP drainage channel is designed for maximum efficiency in removing waste in industrial environments.
The compact stainless steel gutter channel is a high-quality solution for effective water and contaminant drainage in demanding environments, such as food processing plants or facilities with industrial flooring. Made entirely of stainless steel, it ensures durability, hygiene, and resistance to corrosion and aggressive chemicals.

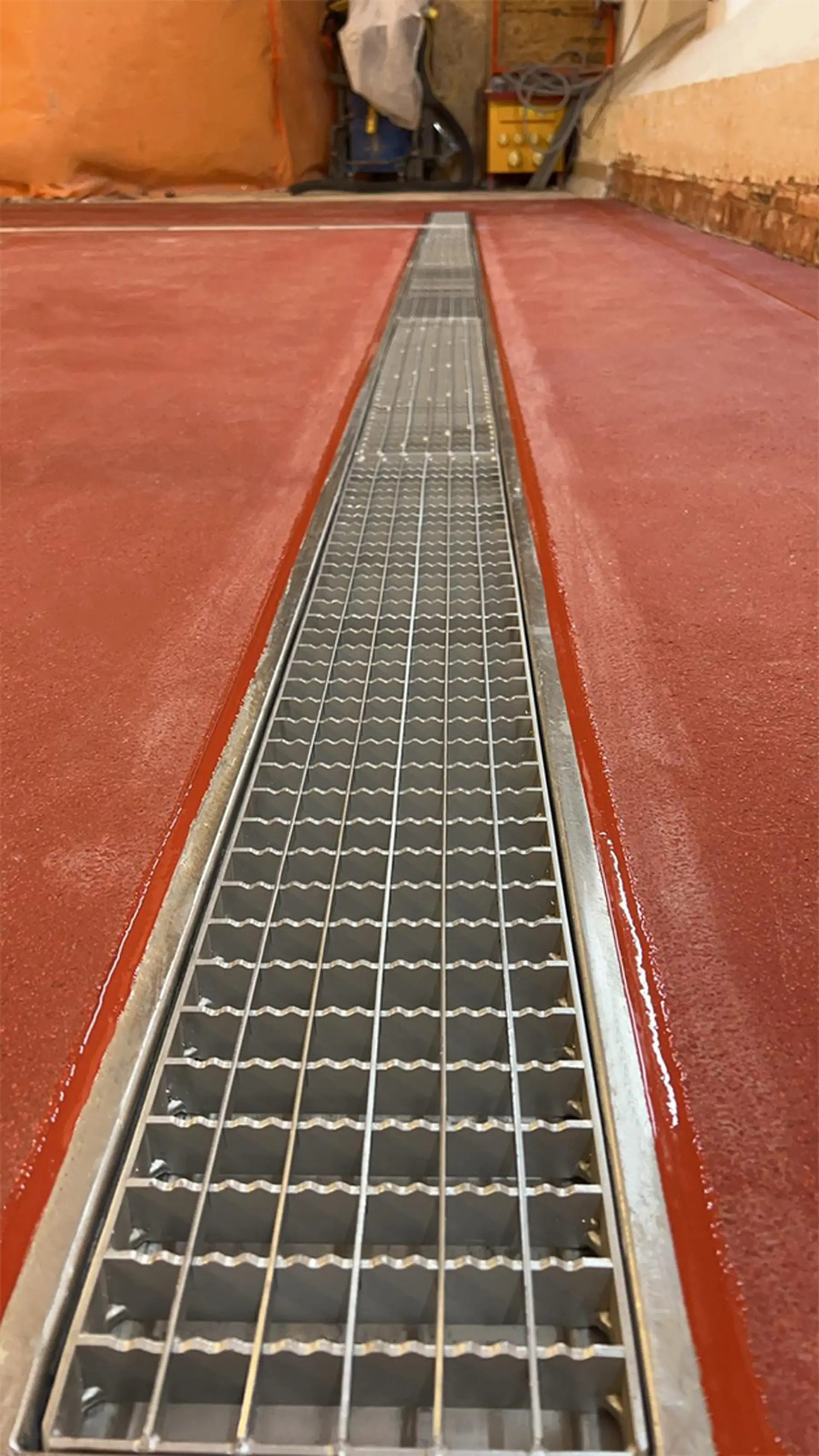

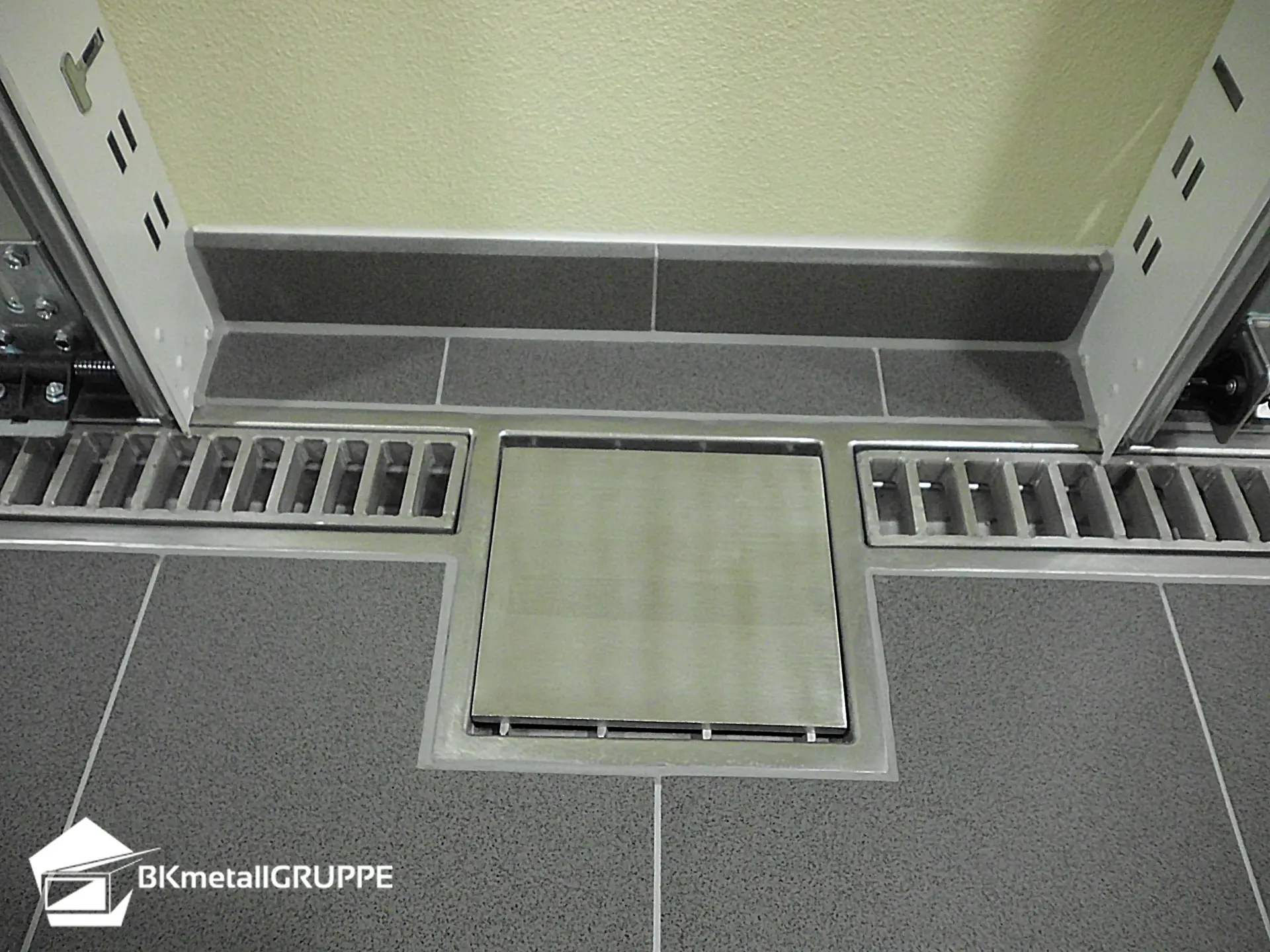

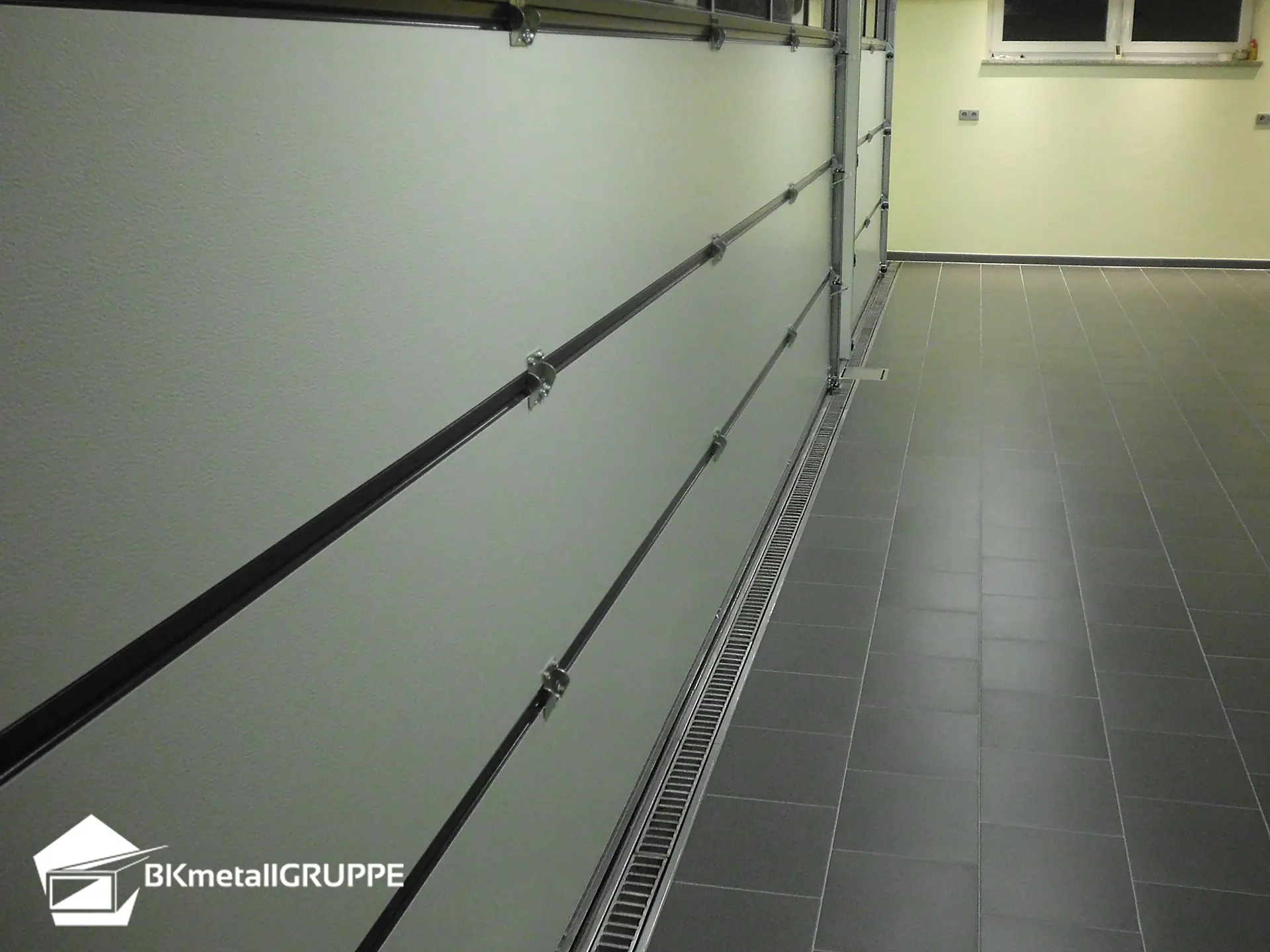

Available as single straight sections or as a modular system that can be connected using flanges with seals or welded on-site with special connectors. At the lowest point of the channel, a customer-selected drain outlet (German: Bodenablauf or Ablauf) – single or double-part – is installed to ensure effective drainage. The BOX-type linear drainage is designed to be compatible with concrete, resin, and square or hexagonal industrial floor tiles.
This stainless steel channel excels as a stainless trough and linear drainage system in food processing plants, breweries, dairies, and other facilities where maximum hygiene and reliable drainage systems are required.

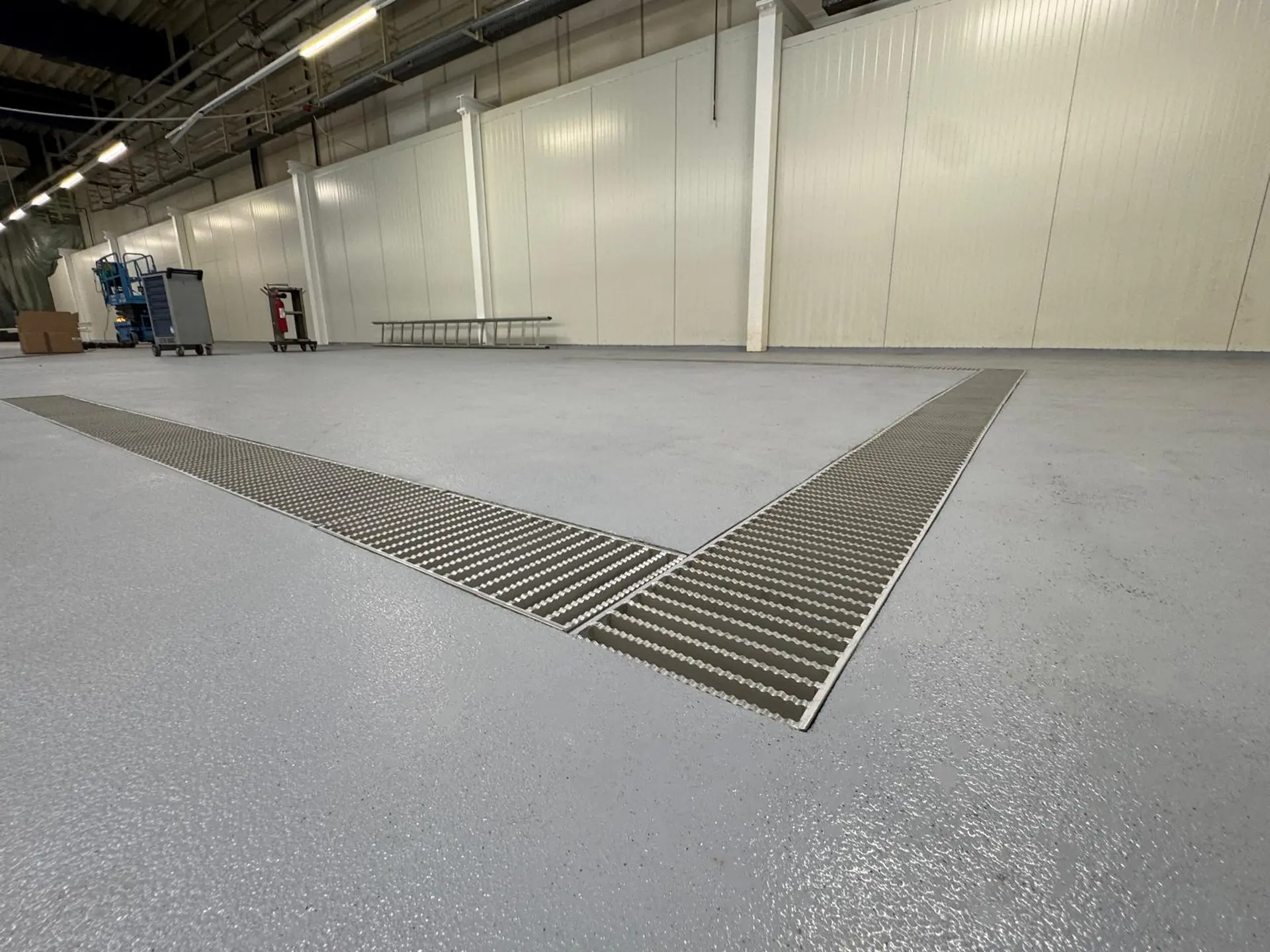

The B&K GROUP drainage channel offers endless configuration possibilities. The system length is virtually unlimited, with standard widths ranging from 100 mm to 1000 mm. The stainless steel drainage can be equipped with corners and transition connectors, creating a perfectly tailored water drainage system made of stainless steel.
