B&K GROUP
Drainage systems
Linear Shower Drains
Shower channel
Shower Drain 600mm Stainless Steel
Stainless steel shallow shower drain
tiled shower drain channel
Linear shower drains with vertical outlet
Selection of covers for linear shower drainage systems
Shower drain with cover for tiling with ceramic tiles
Linear Shower Drains
Linear Shower Drains
Linear Shower Drains
Linear Shower Drains
Linear Shower Drains
Linear Shower Drains
Linear Shower Drains

Linear Shower Drains

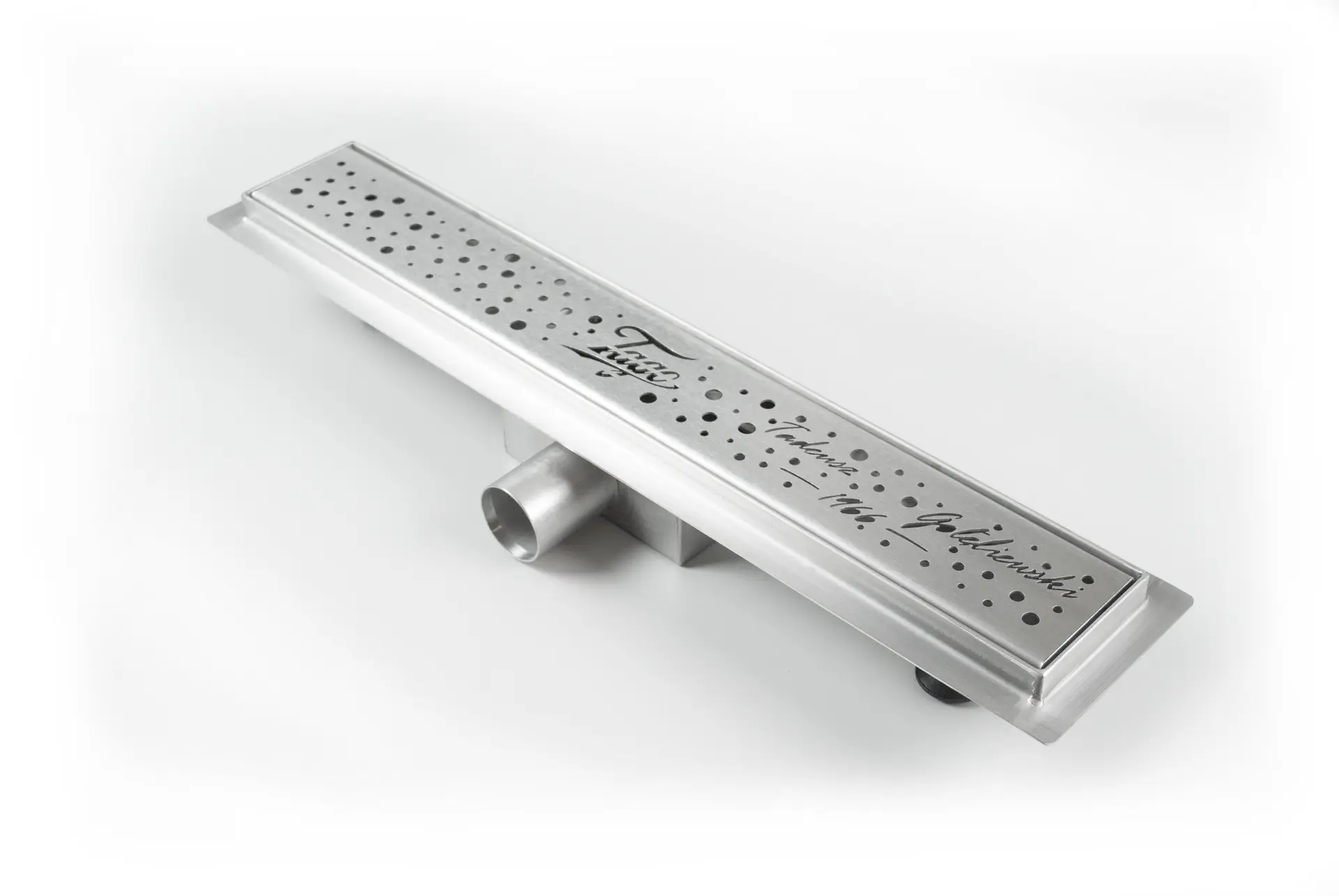

Designed for efficient point drainage of large liquid volumes or disinfection.

Material thickness: 1.5 mm

Stainless steel V2A (1.4301)

Channel length: from 500 mm to 1200 mm

Included: mounting feet, sealing flange, trap, debris basket, cover lifting key

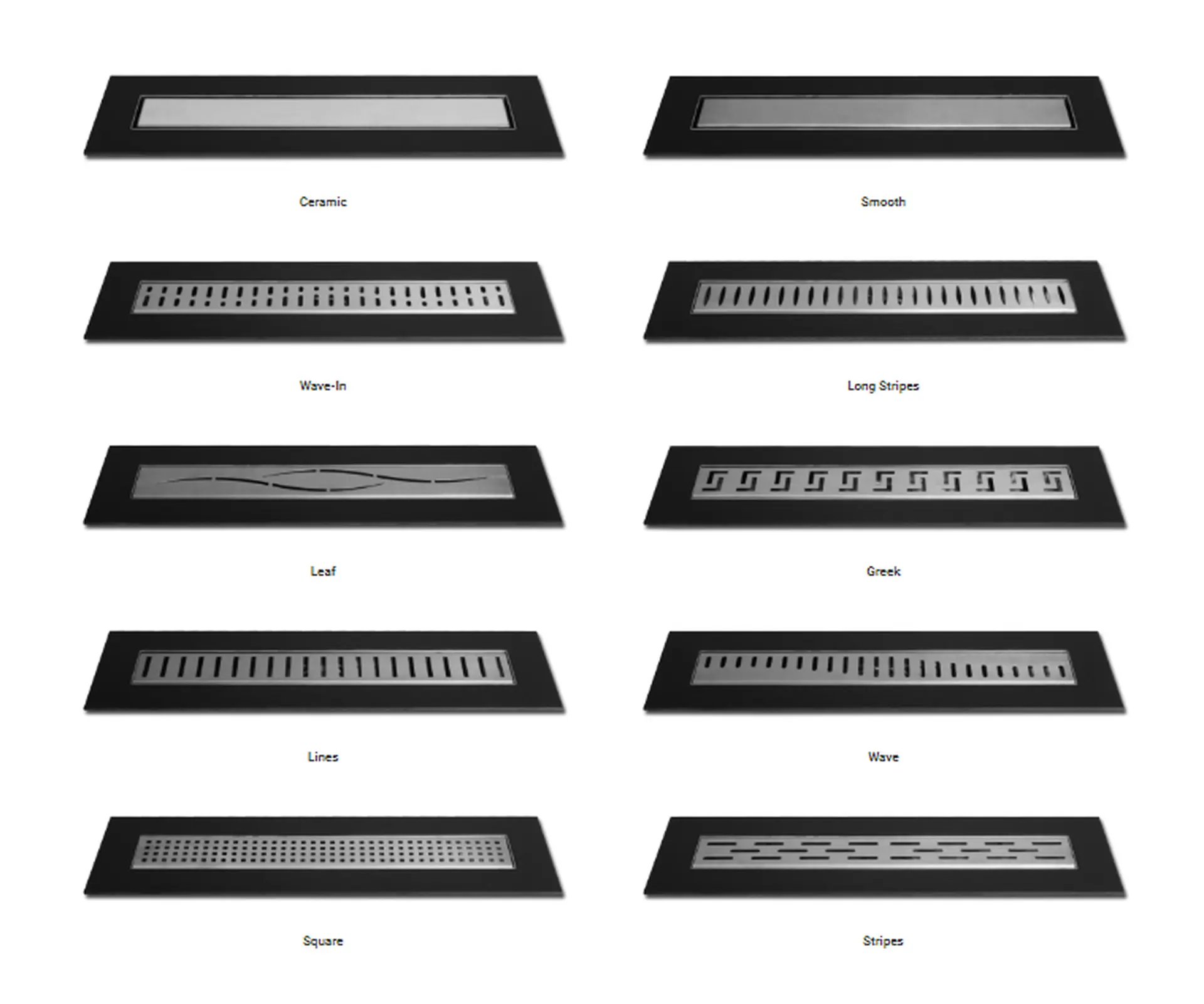

10 cover types to choose from + custom laser-cut cover option

4 bend types available: standard, tile-in, flange, wall flange

Drawings (CAD) Print
Description

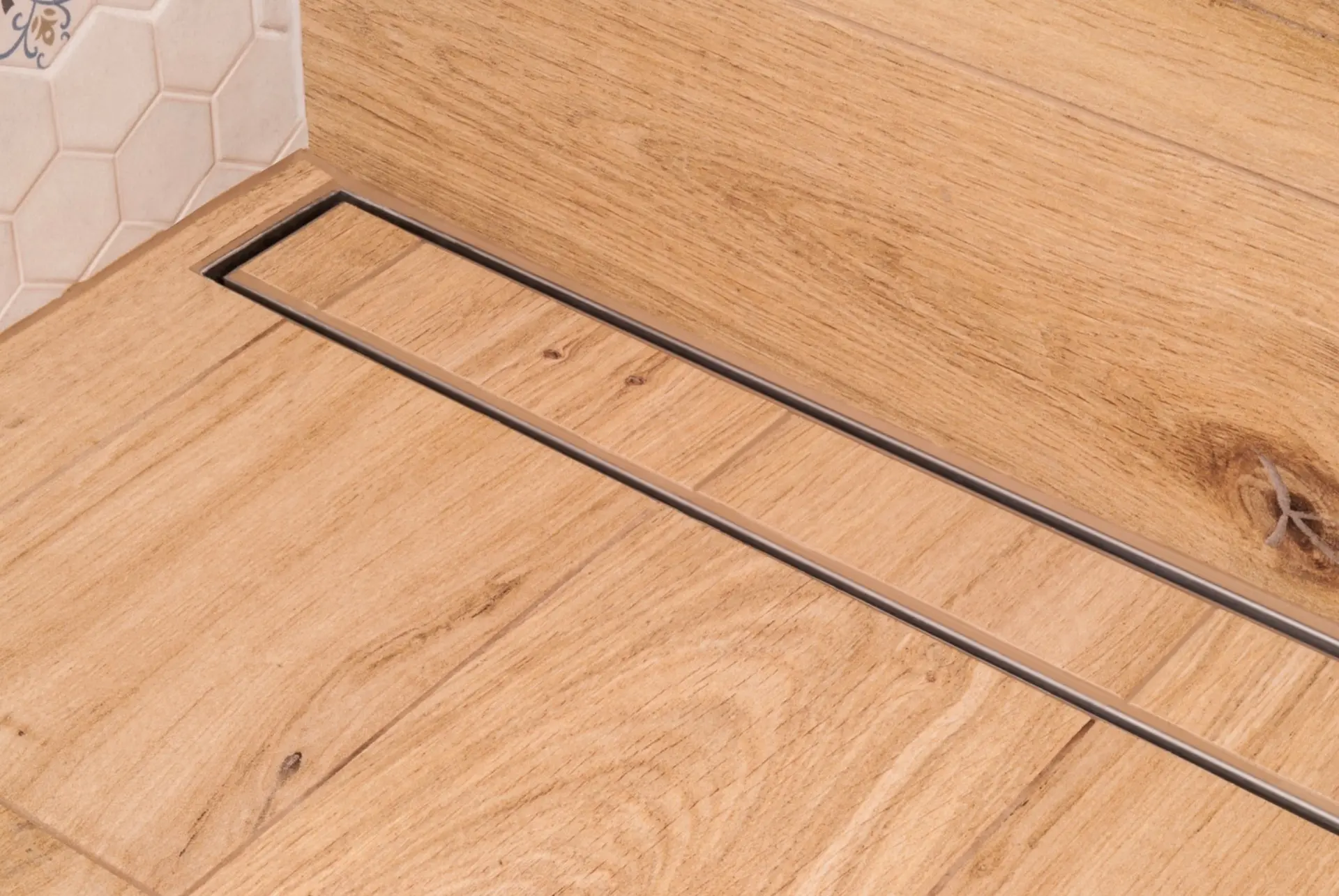

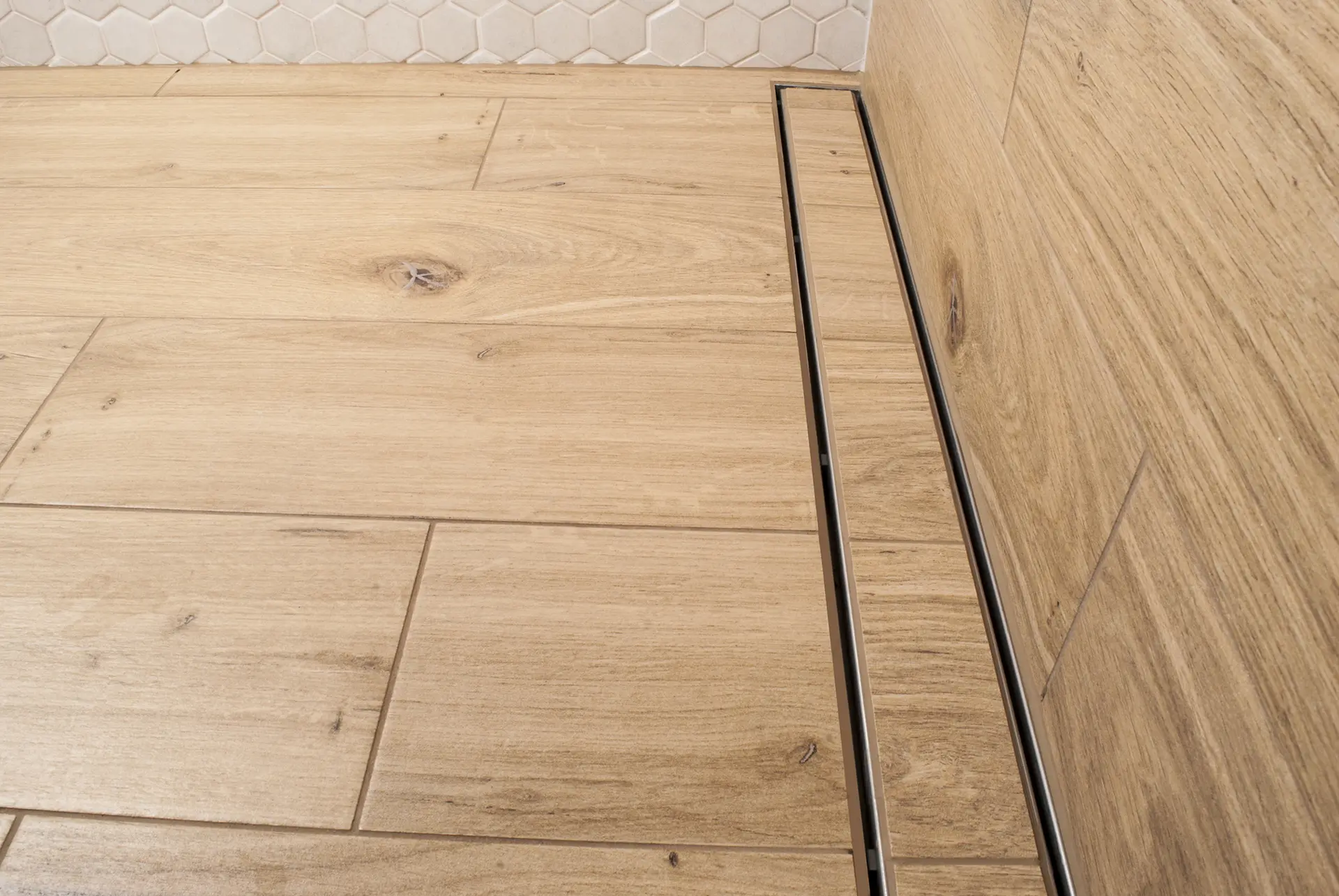

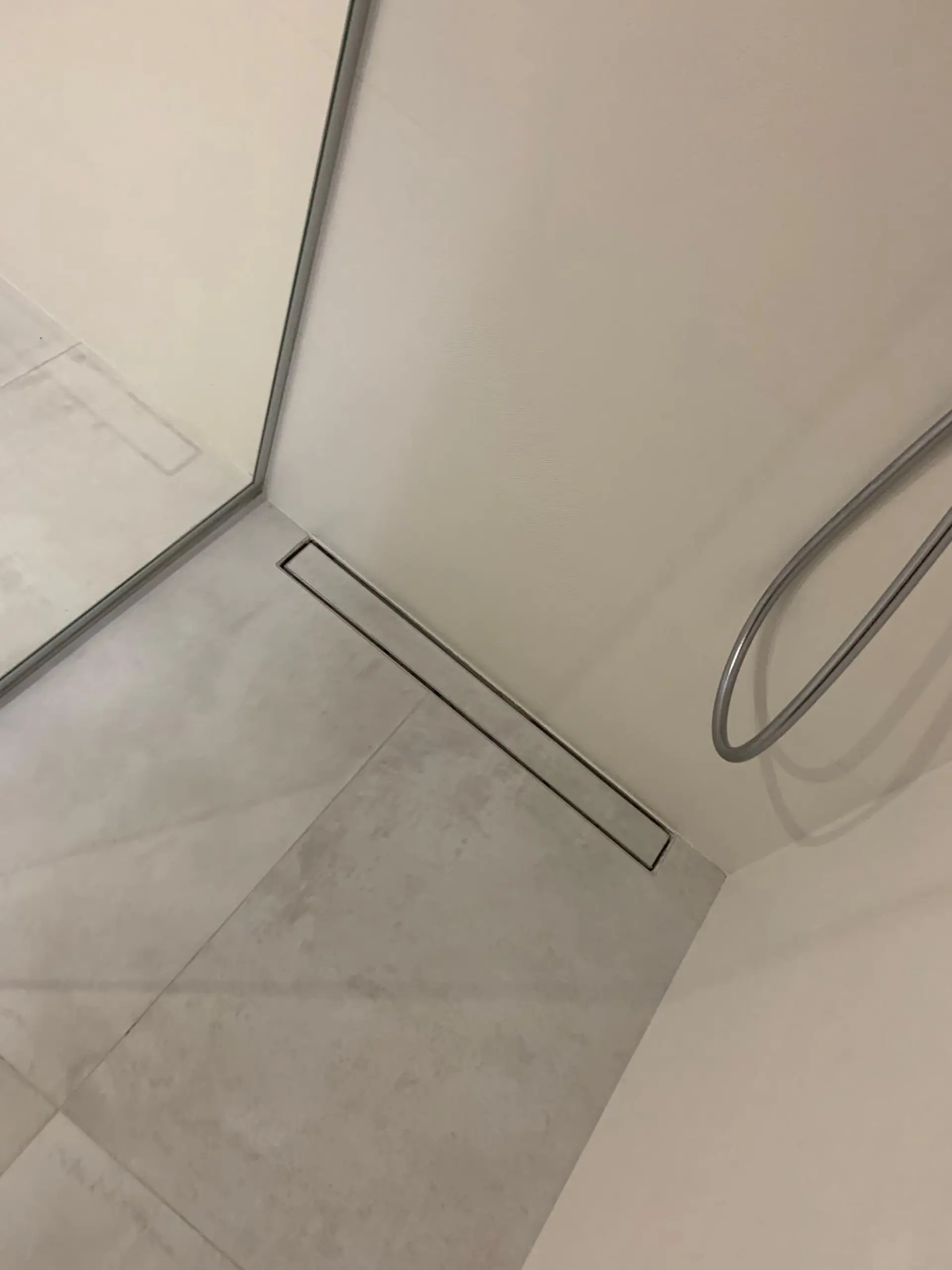

Our stainless steel shower drains are ideal for sanitary areas and are widely used in both residential construction and commercial facilities. With a low overall height (max. 70 mm), B&K GROUP shower drains are preferred for renovation projects and solve drainage issues for near-level floor showers.

Applications:

  • Walk-in showers
  • Barrier-free bathrooms
  • Hotels, spas, gyms
  • Senior living and accessible bathrooms

Related products

Drainage ChannelsSlot DrainsIndustrial Floor DrainsFloor Drains

Frequently asked questions

What grade of stainless steel are B&K Group shower drains made from?

Linear shower drains are manufactured from V2A stainless steel (1.4301 / AISI 304) for standard bathrooms and V4A (1.4404 / AISI 316L) with molybdenum for areas exposed to chlorine or salt, such as pools. Stainless steel is hygienic and corrosion-resistant.

Is a linear drain suitable for barrier-free showers (level with the floor)?

Yes. Linear shower drains are installed flush with the floor, enabling barrier-free shower zones. Water flows along a single line, reducing floor slope requirements and simplifying installation.

Which type of drain should I choose for a shower?

We recommend linear shower drains that collect water along their full length and allow large-format tiles. For larger floor areas or entire facilities, see our stainless steel drainage systems.

Are shower drains easy to clean?

Yes. The smooth stainless steel surface resists bacteria and cleans easily. TIG/MIG welded construction with removable trap and grate simplifies maintenance.

Can shower drains be made to custom dimensions?

Yes. Linear drains are produced in lengths and finishes tailored to your bathroom design. On request we supply 3.1 mill certificates per EN 10204. Our stainless steel drains are exported to 15 markets including the EU, UK and Turkey.

Do the shower drains meet hygiene requirements?

Stainless steel is hygienic and easy to disinfect. We hold PZH approval and EHEDG membership; our solutions support HACCP compliance for pools, hotels and foodservice facilities.
